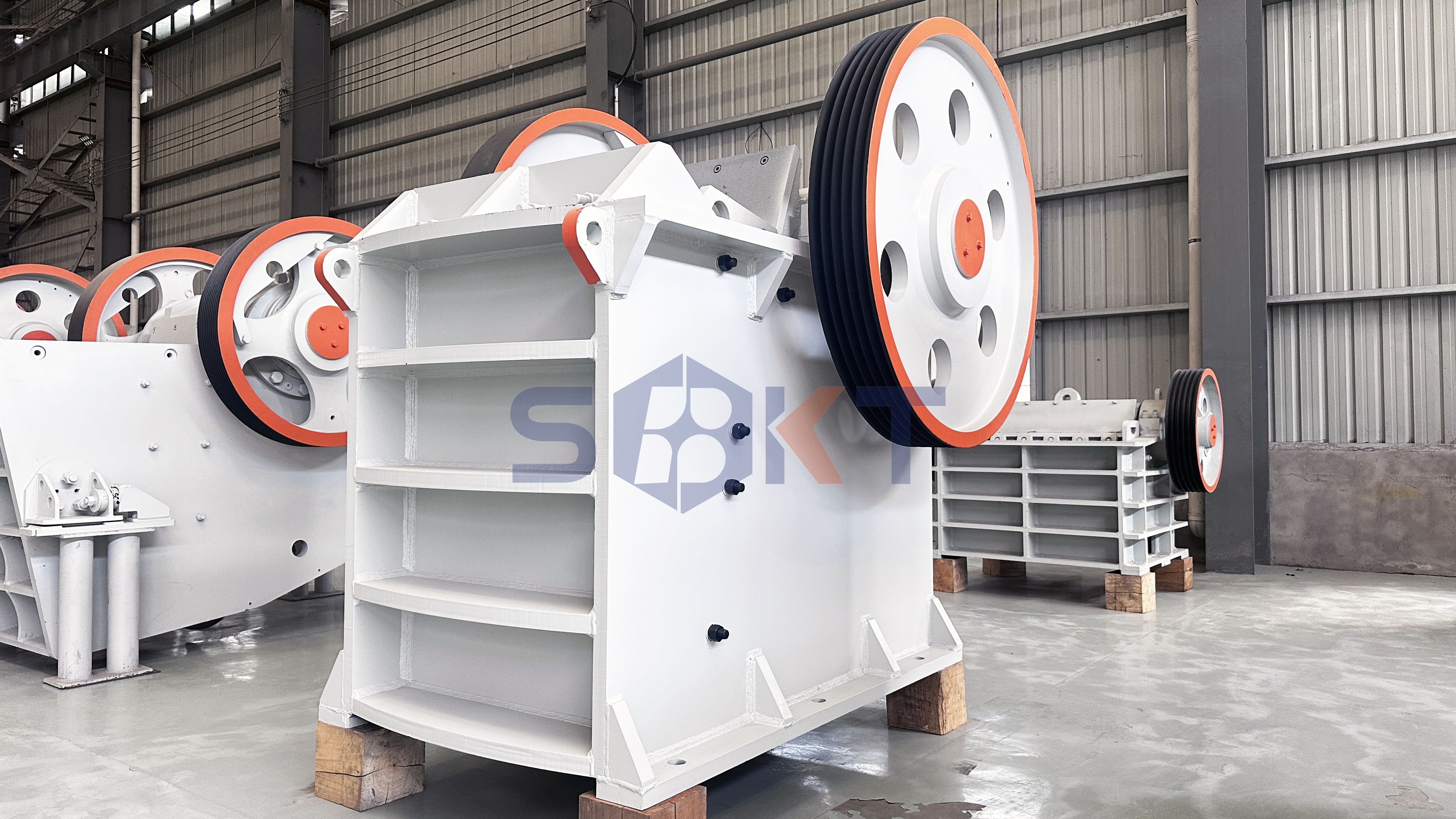

SBKT-Jaw Crusher Performance Characteristics

The jaw crusher is driven by a motor-driven pulley to drive the eccentric shaft to rotate, so that the movable jaw periodically approaches or moves away from the fixed jaw. When the movable jaw rises, the material is squeezed, crushed and crushed between the two jaws; when the movable jaw descends, the crushed material is discharged by its own weight, realizing continuous crushing operation.

SBKT deep-chamber jaw crusher can improve the processing capacity (10-100 tons/hour) and reduce energy consumption by optimizing the chamber design.

1.SBKT jaw crusher has high crushing efficiency
Adopting the principle of flexural extrusion crushing, the crushing ratio can reach 4-6, and the finished product particle size is uniform.

2.SBKT jaw crusher has reliable and durable structure
High manganese steel jaw plate and high-strength frame design can handle hard materials with compressive strength ≤320MPa (such as iron ore, basalt)

3.SBKT jaw crusher has flexible adjustment and low operation and maintenance cost
The gasket-type discharge port adjustment device supports rapid particle size adjustment, and the integrated design of the lubrication system is easy to maintain.

4.SBKT jaw crusher is environmentally friendly
The fully sealed structure reduces dust leakage, and the new shock absorption technology reduces operating noise.
