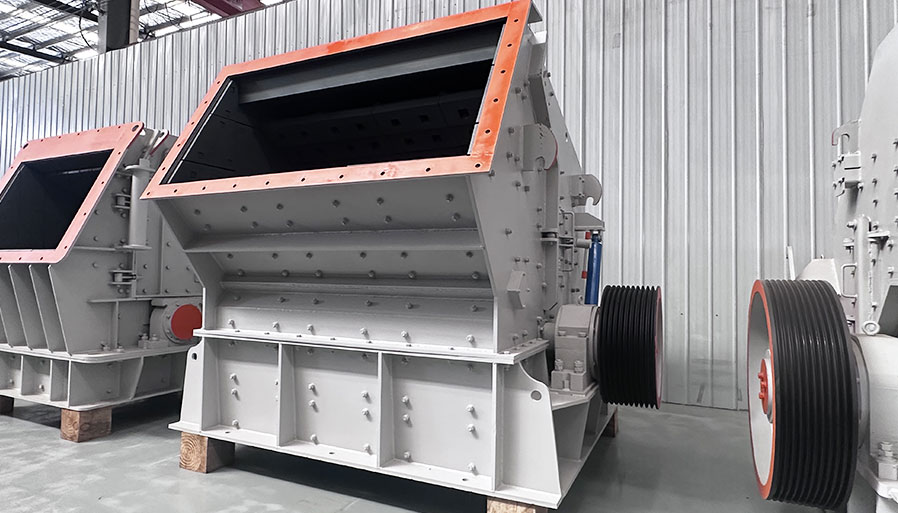

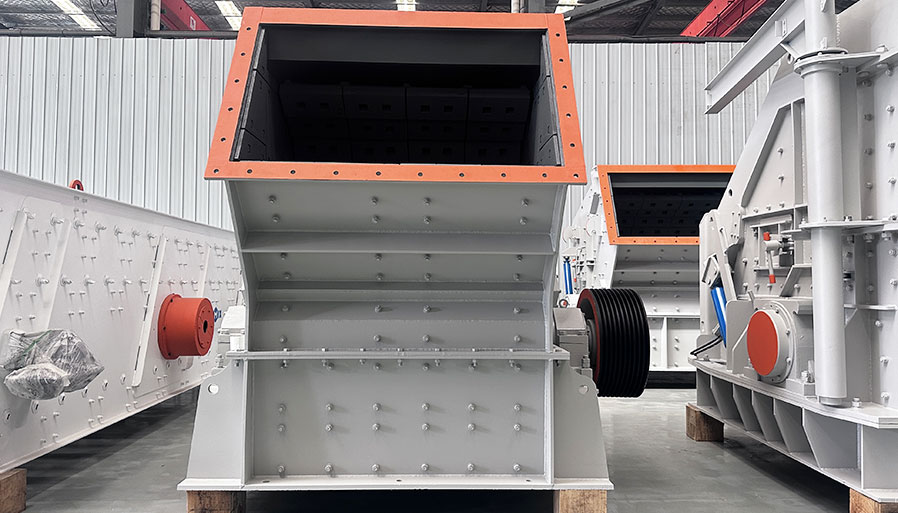

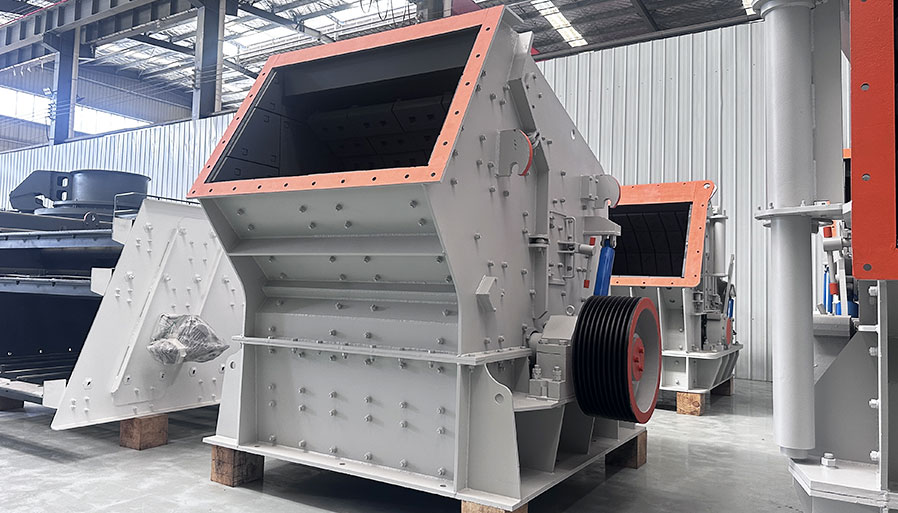

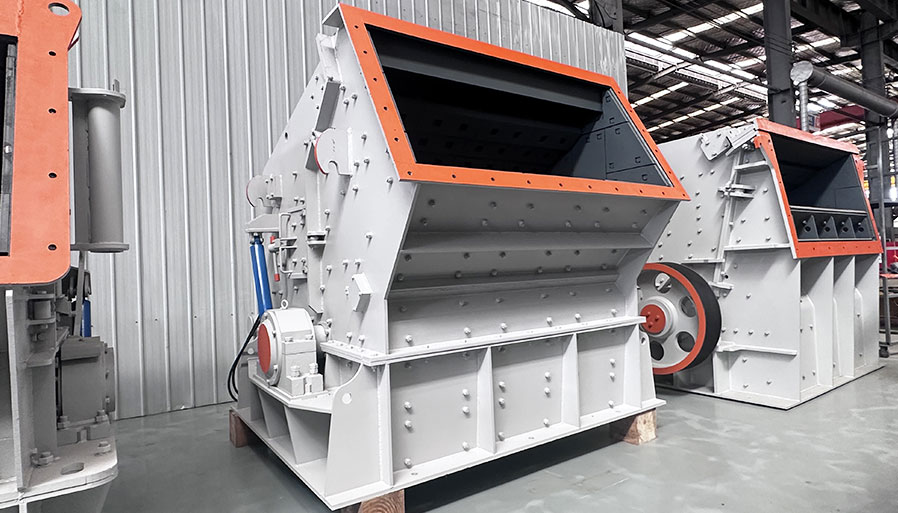

PF/PFV Series Impact Crusher-Shengbang International Technology (henan) Co., Ltd.

Description

PF/PFV series impact crusher can process various coarse, medium and fine materials (granite, limestone, concrete, etc.) with a side length not exceeding 500mm and a compressive strength not exceeding 250MPa. When working, the rotor rotates at high speed, and the material enters and is crushed by the hammer plate on the rotor, and then is impacted to the liner for further crushing, and finally discharged through the discharge port.

Limestone, granite, marble, basalt, iron ore, river pebbles, shale, lapis lazuli, coal, pebbles, construction waste, etc.

Application Field

Hydropower, highway, artificial aggregate, ore crushing and other industries

Technical Parameters

Model	Rotor specifications (mm)	Feeding port size (mm)	Max. feeding size (mm)	Capacity (t/h)	Motor model (kw)	Motor power (kw)
PF-1007	Φ1000x700	400x730	≤250	15-60	Y250M-6	37
PF-1010	Φ1000x1050	400x1080	≤300	50-90	Y315S-6	75
PF-1210	Φ1250x1050	400x1080	≤300	70-130	Y315L1-6	110
PF-1212	Φ1250x1200	400x1250	≤300	70-140	Y315L2-6	132
PF-1214	Φ1250x1400	400x1430	≤300	90-180	Y315L2-6	132
PF-1315	Φ1300x1500	680x1520	≤350	120-250	Y2-355M2-6	200
PF-1320	Φ1300x2000	680x1570	≤500	160-350	Y2-355M2-6	280
PFV-1010	Φ1000x1050	400x1030	≤200	35-60	Y315S-6	75
PFV-1210	Φ1250x1050	570x1030	≤250	70-140	Y315L1-6	110
PFV-1214	Φ1250x1400	570x1430	≤250	90-190	Y315L2-6	160
PFV-1315	Φ1300x1500	625x1530	≤300	150-280	Y2-355M2-6	200
PFV-1320	Φ1300x2000	990x2030	≤500	250-350	Y2-355M2-6	250
PFV-1520	Φ1500X2000	830x2040	≤700	200-550	Y2-355M2-6	200x2
PFV-1620	Φ1600X2000	830x2040	≤700	300-700	Y2-355M2-6	250x2
PFV-1822	Φ1800X2200	1260x2250	≤800	300-1000	Y2-355M2-6	355x2

Product Advantages

01
Heavy-duty rotor design, more durable rotor, greater crushing force.
02
The integral bearing seat cast steel structure is more perfectly matched with the frame. Enhanced radial strength of the bearing seat.
03
The unique plate hammer fixing device makes maintenance and disassembly more convenient.
04
Large bearing capacity, sturdy and durable machine, low maintenance rate.
05
The new feeding method effectively increases the feed size and crushing ratio.
06
The center-open hydraulic opening structure is convenient and quick to repair and maintain.
07
The adjustment protection device greatly increases the safety of the equipment.

PRODUCT CASES

80 TPH Granite Crushing Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

30-50 TPH Gold Ore Crushing Production Line

The customer required to produce powder below 1mm, and the output is 30-50 T/H, so we configure a fine crusher as the secondary crusher for the customer.

150 TPH Construction Waste Crushing Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.
