Magnetic Separator-Shengbang International Technology (henan) Co., Ltd.

Description

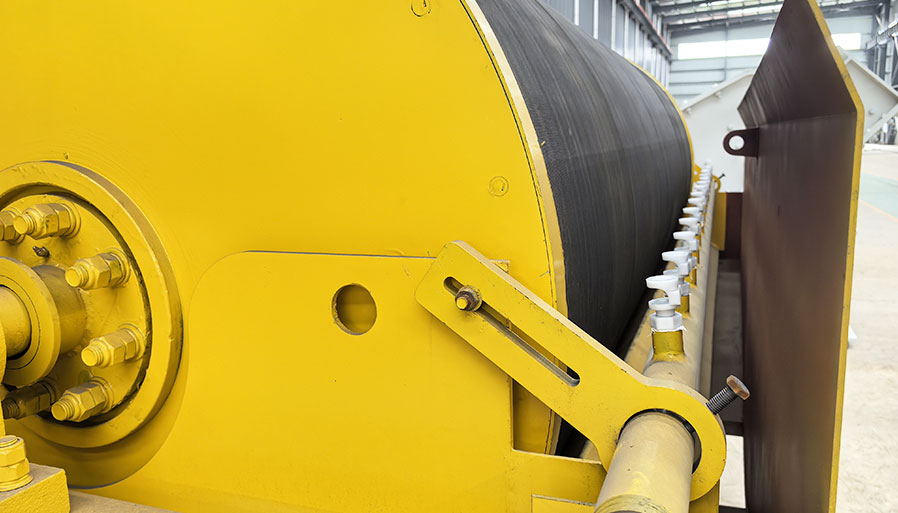

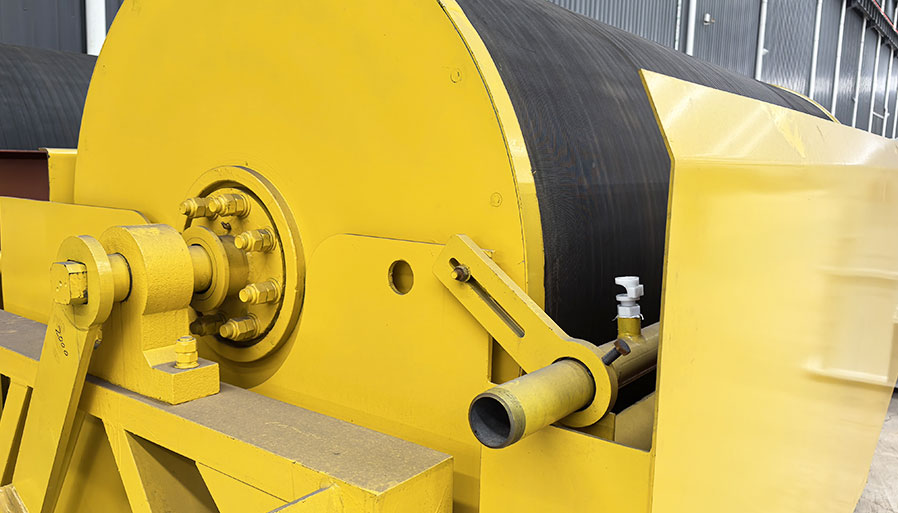

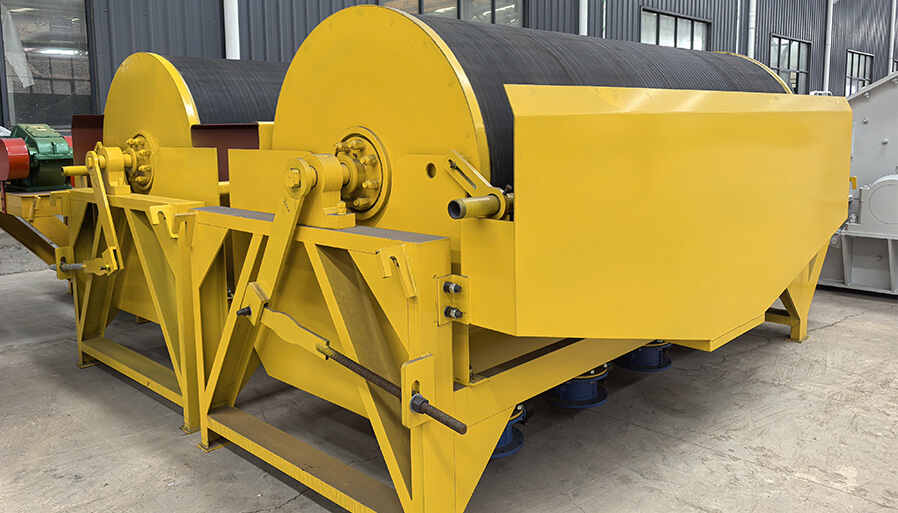

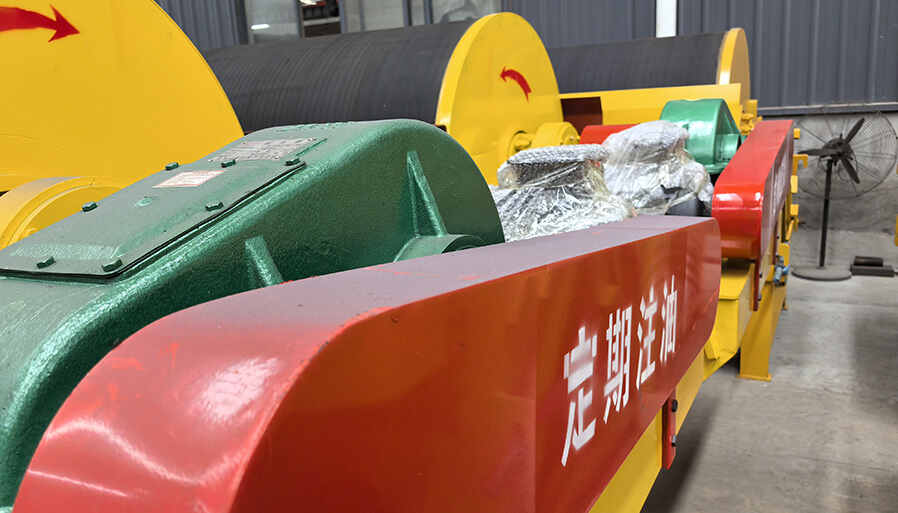

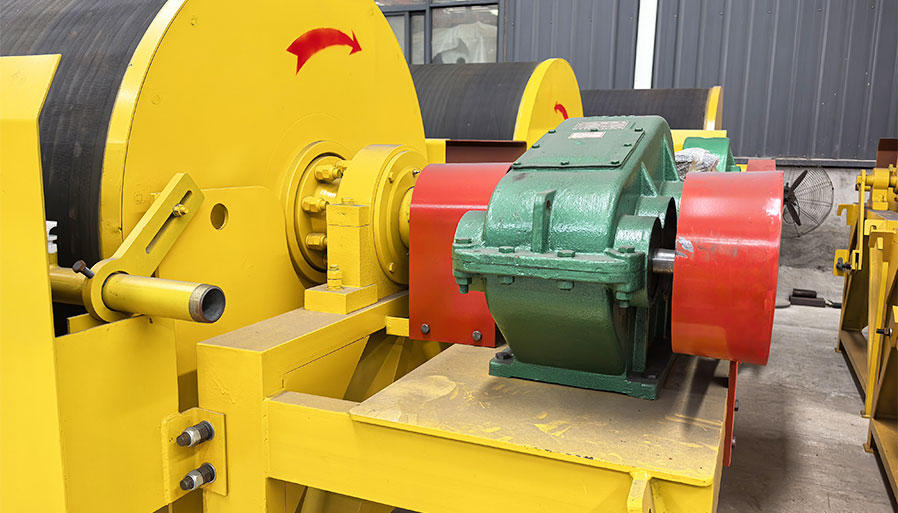

CTB (N.S) series wet permanent magnetic drum magnetic separator, when the slurry enters the magnetic field area, the strongly magnetic minerals are adsorbed on the surface of the drum, the weakly magnetic and non-magnetic minerals are thrown off and discharged, and the strongly magnetic minerals adsorbed on the surface of the drum are taken out of the magnetic field area with the rotation of the drum, and flushed into the concentrate tank with flushing water to complete the sorting operation. It is suitable for wet sorting of fine-grained strongly magnetic minerals, or removing strongly magnetic minerals mixed with non-magnetic minerals.

Application Field

It is suitable for processing iron ores with different magnetic properties and is currently the magnetic separation equipment with the highest magnetic separation efficiency.

Technical Parameters

Technical performance	CTN/B612	Model
Technical performance	CTN/B612	CTN/B612	CTN/B7512	CTN/B7518	CTN/B918	CTN/B924	CTN/B1018	CTN/B1024
Drum diameter(mm)	φ600	φ600	φ750	φ750	φ900	φ900	φ1050	φ1050
Drum length(mm)	1200	1800	1200	1800	1800	2400	1800	2400
Drum surface high magnetic induction intensity(gs)	1200-1500	1200-1500	1200-1500	1200-1500	1200-1500	1200-1500	1200-1500	1200-1500
Feeding size(mm)	0.4-0	0.4-0	0.5-0	0.5-0	0.8-0	0.8-0	0.8-0	0.8-0
Feeding concentration(%)	20-25	20-25	20-25	20-25	25-35	25-35	25-35	25-35
Working gap(mm)	30-40	30-40	30-40	30-40	45-75	45-75	45-75	45-75
Dry ore(t/h)	10-15	15-20	10-15	30-35	35-50	40-60	50-100	70-130
Capacity Pulp powder (m³/h)	40-60	50-80	40-60	80-120	100-150	120-180	170-200	200-300
Power(kw)	2.2	2.2	2.2	3	4	4	5.5	5.5
Weight(kg)	1200	1500	1830	2045	3500	4000	4095	5071

Product Advantages

01
This machine can continuously feed and discharge ore, with high production efficiency.
02
The magnetic field depth is large, the working gap is large, and it has a high processing capacity.

PRODUCT CASES

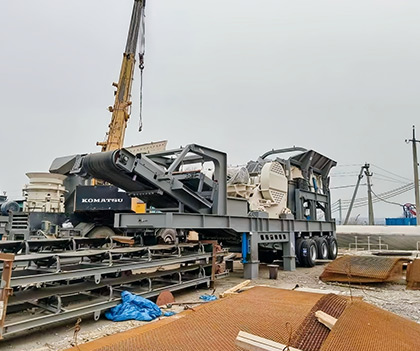

80 TPH Granite Crushing Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

200 TPH Granite Crushing Production Line

We configured a PE500X750 and PYB900 cone crusher combined mobile station for the customer. The vibrating feeder feeds the granite below 400mm into the PE500x750 jaw crusher for primary crushing, and then it to the PYB900 cone crusher for secondary crushing. The vibrating screen is used to screen out the finished building materials required by the customer.

30-50 TPH Gold Ore Crushing Production Line

The customer required to produce powder below 1mm, and the output is 30-50 T/H, so we configure a fine crusher as the secondary crusher for the customer.

Related Products

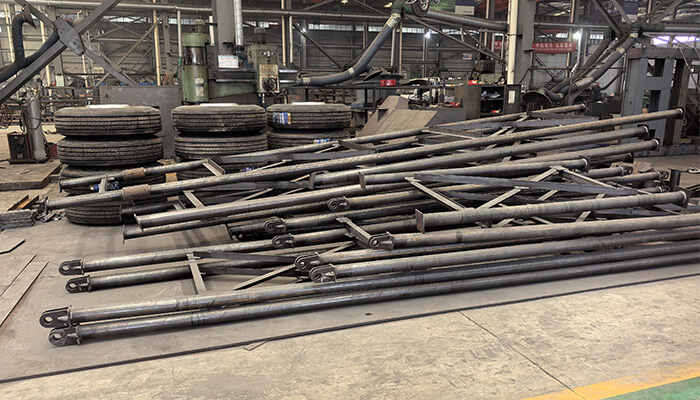

Belt Conveyor

This machine is used for transferring bulk or packaged materials, it is widely used in the industry of mining, building materials, metallurgy, coal and so on, According to various transferring requirements, the transferring system can be single or multiple conveyors or combined with other equipment to make up slope or horizontal transfer system to meet the need of different working conditions,

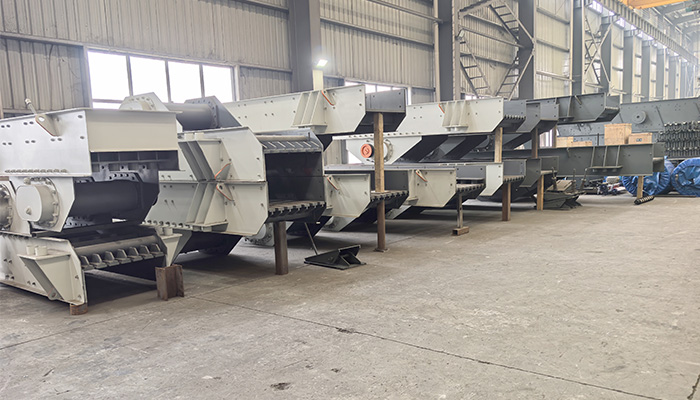

Vibrating Feeder

During production flow, the SBKT Vibrating Feeder makes the granule, block of raw material from hopper delivery to various sets evenly, timely and continuously. in a sand-stone production line, the machine can continuously convey the materials to crushers and coarsely screen the materials.

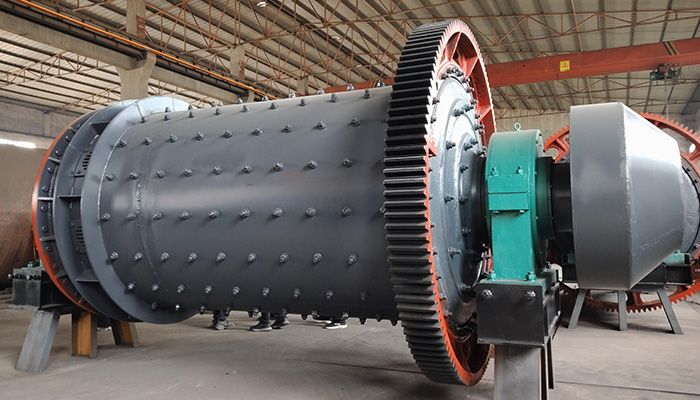

Ball Mill

The ball mill is a key equipment for crushing materials after they are broken. This type of grinding mill is to load a certain number of steel balls into its cylinder as grinding media.

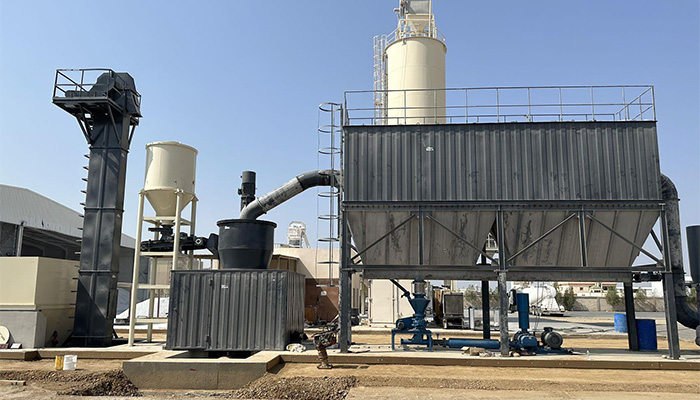

Three-Ring Micro-Powder Grinding Mill
