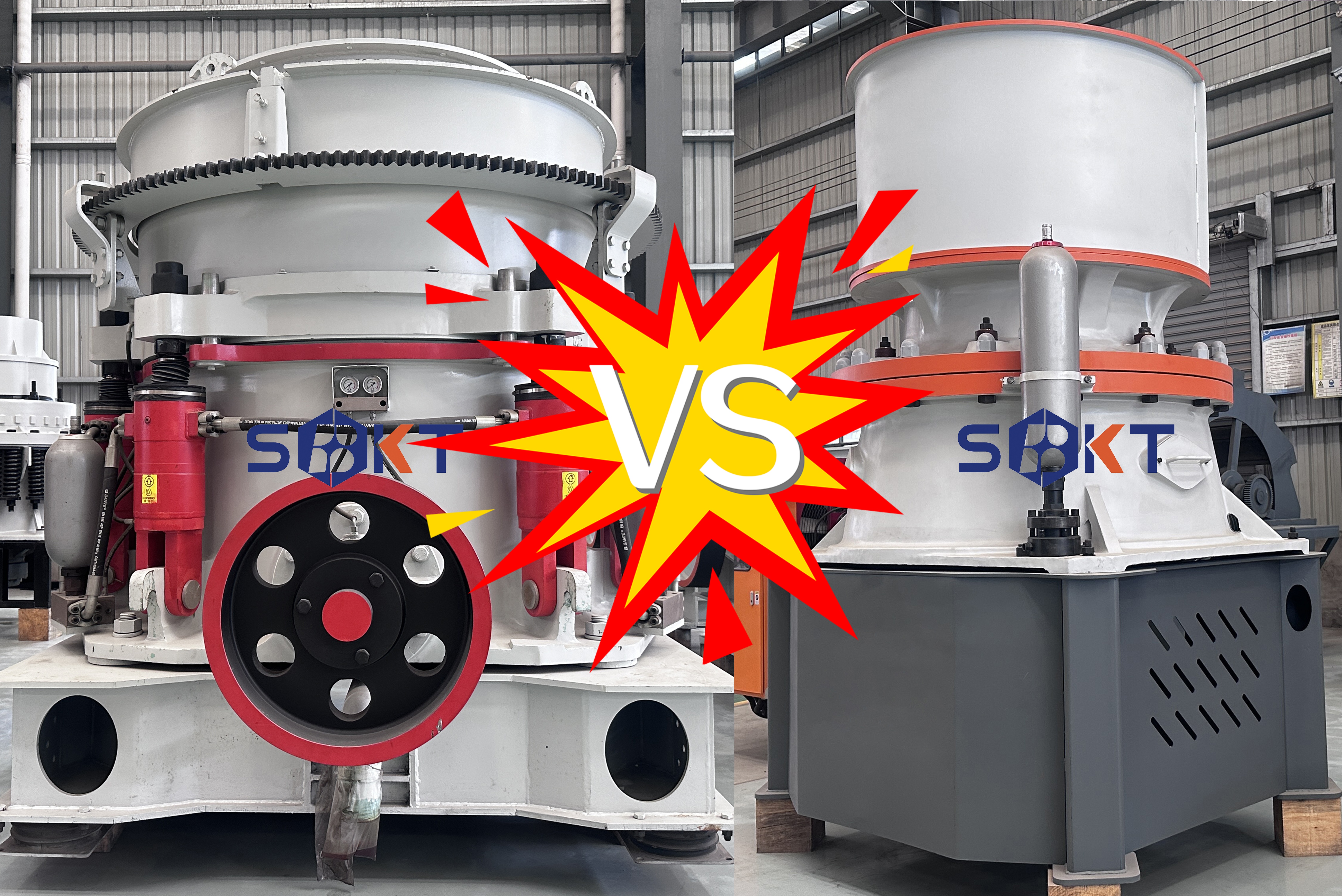

Comparative Analysis of Single-cylinder and Multi-cylinder cone crushers-1

Shengbang Machinery , a china manufacturer of all kind of stone crushers, sand makers,mining equipment, vibrating feeder, screens, and we have professional engineer team can offer you the suitable solutions according to your demands.
The company integrates product design, research and development, processing, manufacturing, sales, and after sales service, adhering to the concept of “scientific, rigorous, persistent, and refined” to provide customers with one stop services.
Our topic today is Comparative Analysis of Single-cylinder and Multi-cylinder cone crushers.
01-Overview of Equipment
Cone crusher basic definition
How it works
Cone crusher squeezes and crushes materials into required particle size through the relative movement between the movable cone and the fixed cone. it is widely used in medium and fine crushing operations in mining, metallurgy, construction and other industries.
Core components
It mainly includes frame, transmission device, eccentric sleeve, movable cone, fixed cone, hydraulic system, etc. All components work together to achieve efficient crushing.
Applicable materials
Cone crusher is particularly suitable for processing medium-hard and hard ores,such as granite, basalt, iron ore, etc., and can achieve efficient and stable crushing effect.
02-Core Structure Differences
Single cylinder/multi-cylinder structure classification standard
Differences in hydraulic systems: Single-cylinder hydraulic cone crushers use a single-cylinder hydraulic system, which directly adjusts the discharge port and provides overload protection through the hydraulic cylinder; multi-cylinder hydraulic cone crushers use a multi-cylinder hydraulic system which achieves more stable adjustment and protection through the coordinated work of multiple hydraulic cylinders
Automation degree: Single-cylinder hydraulic cone crusher has a high degree of automation and the discharge port is easy to adjust; multi-cylinder hydraulic cone crusher has a multi-cylinder design the equipment runs more smoothly, the degree of automation is higher, and the operation is easier.

Crushing force comparison: Single-cylinder hydraulic cone crusher has relatively small crushing force, which is suitable for crushing medium-hard and hard ores; multi-cylinder hydraulic cone crusher has greater crushing force, which is suitable for crushing high-hardness ores and can provide higher crushing efficiency.
Maintenance cost: Single-cylinder hydraulic cone crusher has a relatively simple structure and low maintenance cost; multi-cylinder hydraulic cone crusher has a complex structure and is difficult to maintain, with higher initial investment and maintenance costs, but better long-term operating stability.
Single cylinder overall frame design
Hydraulic adjustment system
Single cylinder hydraulic cone crusher adopts single cylinder hydraulic system to adjust the discharge port and provide overload protection. This design makes the adjustment of the discharge port more convenient, with a high degree of automation and reduces manual intervention.
Stable support
The main shaft of the single-cylinder cone crusher is tightly integrated with the moving cone and supported by bowl shaped tiles. This design ensures that the main shaft and the moving cone are stably supported, and the eccentric sleeve provides the necessary crushing force for the main shaft to ensure the stability of the equipment operation.
Efficient crushing
Single cylinder hydraulic cone crusher has excellent performance in medium crushing effect, throughput and product particle shape. lt is suitable for crushing a variety of materials, especially medium hard and hard ores,
Multi-cylinder hydraulic system Multi-cylinder hydraulic cone crusher adopts multi-cylinder hydraulic system to adjust and provide overload protection. This design makes the equipment more stable during operation and has greater crushing force, which is suitable for crushing high-hardness ores.
Strong support
The main shaft of the multi-cylinder cone crusher is designed to be short and thick with a large diameter. lt is directly installed on the frame without being placed in an eccentric sleeve. The frame provides it with strong support and enhances the bearing capacity of the main shaft.
Automated Operation
Multi-cylinder hydraulic cone crusher has a high degree of automation and is
easy to operate. lt can achieve automatic adjustment of the discharge port and overload protection through the hydraulic system, thus improving the efficiency and safety of the
equipment.
03Working Performance Comparison
Crushing efficiency classification
Single Cylinder Cone Crusher
The crushing efficiency is high. Due to its hydraulic adjustment and hydraulic protection device, it can achieve more precise adjustment of the discharge port.thereby improving the crushing efficiency. lt is suitable for occasions with high requirements on output and efficiency.
